HMI	W系列內置二組以太網型//65536色TFT/打印/U盤/鼠標
HMI	DOP-W157B	15.1" 4:3屏/分辨率1024×768/SD卡, COM2:RS-232 / 422 / 485, COM3:RS-232 / 422 / 485, 開孔尺寸:372.4*283.7, 金屬殼
HMI	DOP-W127B	12.1" 4:3屏/分辨率1024×768/SD卡, COM2:RS-232 / 422 / 485, COM3:RS-232 / 422 / 485, 開孔尺寸:302.7*228.7, 金屬殼
HMI	DOP-W105B	10.4" 4:3屏/分辨率800×600/SD卡, COM2:RS-232 / 422 / 485, COM3:RS-232 / 422 / 485, 開孔尺寸:285.2*210.2, 塑殼
HMI	B系列通用型HMI
HMI	DOP-B10S411	10"寬屏/分辨率800×480/打印/U盤/鼠標, COM1:RS232, COM2:RS-232/485, COM3:RS-232/422/485, 開孔尺寸:261.3 x 189.3
HMI	DOP-B07S411	7"寬屏/分辨率/800x480/U盤/打印機/鼠標, COM1:RS232, COM2:RS-232/485, COM3:RS-422/485, 開孔尺寸:196.9 x 142.9
HMI	DOP-B07S410	7"寬屏/分辨率800x480/COM1:RS-232(支持流量控制)/RS-422/RS-485, 開孔尺寸:196.9 x 142.9
HMI	DOP-B07SS411	7"寬屏/分辨率800x480/ COM1:RS-232(支持流量控制)/RS-422/RS-485, 開孔尺寸:196.9 x 142.9
HMI	DOP-B03S210	4.3"寬屏/分辨率480*272, COM1:RS-232(支持流量控制)/RS-422/RS-485, 開孔尺寸:118.8 x 92.8
HMI	B系列升級型HMI
HMI	DOP-B10S615	10.1"寬屏/分辨率1024x600/SD卡, COM1:RS232, COM2:RS-232/422/485, COM3:RS-232/422/485, 開孔尺寸:261.3 x 189.3
HMI	DOP-B10S511	10.4"4:3屏/分辨率800x600, COM1:RS232, COM2:RS-232/485, COM3:RS-232/422/485, 開孔尺寸:285.2 x 210.2
HMI	DOP-B08S515	8" 4:3屏幕/分辨率800x600/SD卡, COM1:RS232, COM2:RS-232/422/485, COM3:RS-232/422/485, 開孔尺寸:219.4 x 166.5
HMI	DOP-B07S415	7"寬屏/分辨率800x480/SD卡, COM1:RS232, COM2:RS-232/422/485, COM3:RS-232/422/485, 開孔尺寸:196.9 x 142.9
HMI	DOP-B07S515	7" 4:3屏幕/分辨率800x600/SD卡, COM1:RS232, COM2:RS-232/485, COM3:RS-422/485, 開孔尺寸:172.4 x 132.4
HMI	DOP-B05S111	5.6" 4:3屏幕/分辨率320x234/8M Flash, COM1:RS232, COM2:RS-232/485, COM3:RS-422/485, 開孔尺寸:172.4 x 132.4
HMI	DOP-B03S211	4.3" 寬屏/分辨率480*272, COM1:RS232/485, COM2:RS-422/485, 開孔尺寸:118.8 x 92.8
HMI	B系列內置以太網型HMI
HMI	DOP-B10E615	10.1"寬屏/分辨率1024x600/SD卡, COM1:RS232, COM2:RS-232/422/485, COM3:RS-232/422/485, 開孔尺寸:261.3 x 189.3
HMI	DOP-B10E515	10.4"4:3屏/分辨率800x600/SD卡, COM1:RS232, COM2:RS-232/485, COM3:RS-232/422/485, 開孔尺寸:285.2 x 210.2
HMI	DOP-B08E515	8" 4:3屏幕/分辨率800x600/SD卡, COM1:RS232, COM2:RS-232/422/485, COM3:RS-232/422/485, 開孔尺寸:219.4 x 166.5
HMI	DOP-B07E415	7"寬屏/分辨率800x480/SD卡, COM1:RS232, COM2:RS-232/422/485, COM3:RS-232/422/485, 開孔尺寸:196.9 x 142.9
HMI	DOP-B07E515	7" 4:3屏幕/分辨率800x600/SD卡, COM1:RS232, COM2:RS-232/485, COM3:RS-422/485, 開孔尺寸:172.4 x 132.4
HMI	DOP-B07E411	7"寬屏/分辨率/800x480,COM1:RS232, COM2:RS-232/485, COM3:RS-422/485, 開孔尺寸:196.9 x 142.9
HMI	DOP-B03E211	4.3" 寬屏/分辨率480*272, COM1:RS232/485, COM2:RS-422/485, 開孔尺寸:118.8 x 92.8
HMI	B系列內置機械按鈕型HMI
HMI	DOP-B07S401K	7"寬屏/分辨率800x480/8個機械按鈕, COM1:RS232, COM2:RS-232/485, COM3:RS-422/485, 開孔尺寸:196.9 x 142.9
HMI	DOP-B07S411K	7"寬屏/分辨率800x480/8個機械按鈕(平板型), COM1:RS232, COM2:RS-232/485, COM3:RS-422/485, 開孔尺寸:196.9 x 142.9
HMI	B系列內置電子凸輪和G碼功能型HMI
HMI	DOP-B10PE515	10.4"4:3屏/分辨率800x600/SD卡, COM1:RS232, COM2:RS-232/485, COM3:RS-232/422/485, 開孔尺寸:285.2 x 210.2
HMI	DOP-B07PS415	7"寬屏/分辨率800x480/SD卡, COM1:RS232, COM2:RS-232/422/485, COM3:RS-232/422/485, 開孔尺寸:196.9 x 142.9
HMI	DOP-B07PS515	7" 4:3屏幕/分辨率800x600/SD卡, COM1:RS232, COM2:RS-232/485, COM3:RS-422/485, 開孔尺寸:172.4 x 132.4
HMI	B系列內置DMV控制畫面和VGA接口
HMI	DOP-B10VS511	10.4"4:3屏/分辨率800x600, COM1:RS232, COM2:RS-232/422/485, COM3:RS-232/422/485, 開孔尺寸:285.2 x 210.2
HMI	H系列手持型HMI
HMI	DOP-H07S425	7"寬屏/分辨率800x480/SD卡, RS-422／RS-485(Note 2), 出線長度5米
HMI	DOP-H07E425	7"寬屏/分辨率800x480/SD卡, Ethernet*1, 出線長度5米
HMI	DOP-H07S42A	7"寬屏/分辨率800x480/SD卡, RS-422／RS-485(Note 2), 出線長度10米
HMI	DOP-H07E42A	7"寬屏/分辨率800x480/SD卡, Ethernet*1, 出線長度10米
HMI	DOP-H07S465	7"寬屏/分辨率800x480/SD卡, RS-422／RS-485(Note 2), 手搖輪, 出線長度5米
HMI	DOP-H07E465	7"寬屏/分辨率800x480/SD卡, Ethernet*1, 手搖輪, 出線長度5米
HMI	DOP-H07S46A	7"寬屏/分辨率800x480/SD卡, RS-422／RS-485(Note 2), 手搖輪, 出線長度10米
HMI	DOP-H07E46A	7"寬屏/分辨率800x480/SD卡,Ethernet*1, 手搖輪, 出線長度10米
TP	7"觸控屏, 分辨率800x480點陣 256K FLASH, 萬年歷, DC24V供電
TP	TP70P-RM0	COM2:RS232, COM3:RS485, 開孔尺寸;191x128, 只支持臺達連接PLC產品
TP	TP70P-RM1	COM2:RS232, COM3:RS422/485, 開孔尺寸;191x128 , 支持三菱/歐姆龍/西門子/松下
TP	文本顯示器, DC24V供電
TP	TP02G-AS1	單色STN 2行顯示 160*32點陣 256K FLASH 無萬年歷,COM1:RS232, COM2:RS485/422, 開孔尺寸: 36.5x85
TP	TP04G-AS2	單色STN 4行顯示 128*64點陣 256K FLASH 有萬年歷, RS232, COM2:RS485/422, 開孔尺寸: 36.5x85
TP	TP04G-AL2	單色STN 4行顯示 192*64點陣 256K FLASH 有萬年歷,RS232,COM2:RS485/422, 開孔尺寸: 152x97
TP	TP04G-AL-C	單色STN 4行顯示 192*64點陣 256K FLASH 有萬年歷,RS232,COM2:無, 開孔尺寸: 152x97
TP	TP04G-BL-C	單色STN 4行顯示 192*64點陣 256K FLASH 有萬年歷,RS232,COM2:無, 開孔尺寸: 164x97
TP	TP04G-BL-CU	單色STN 4行顯示 192*64點陣 256K FLASH, RS232,萬年歷和COM2:無，USB下載, 開孔尺寸: 164x97
TP	TP08G-BT2	單色STN 8行顯示 240*128點陣 1M FLASH 有萬年歷,RS232,COM2:RS485/422, 開孔尺寸: 198x110.5
TP	7"觸控屏PLC一體機, 分辨率800x480點陣 256K FLASH, 萬年歷, DC24V供電
TP	TP70P-16TP1R	TP070G 內置/8DI/8DO(繼電器/250Vac/24Vdc/2A), COM2:RS485, COM3:RS485, 開孔尺寸;191x12
TP	TP70P-32TP1R	TP070G 內置/16DI/16DO(繼電器/250Vac/24Vdc/2A), COM2:RS485, COM3:RS485, 開孔尺寸;191x12
TP	TP70P-22XA1R	TP070G 內置/8DI/8DO(繼電器/250Vac/24Vdc/2A), 4AI/2AO, COM2:RS485, COM3:RS485, 開孔尺寸;191x12
TP	TP70P-21EX1R	TP070G 內置/8DI/8DO(繼電器/250Vac/24Vdc/2A), 2PT/2AI(電流型)/1AO, COM2:RS485, COM3:RS485, 開孔尺寸;191x12
TP	TP70P-16TP1T	TP070G 內置/8DI/8DO(晶體管24Vdc/0.5A), COM2:RS485, COM3:RS485, 開孔尺寸;191x12
TP	TP70P-32TP1T	TP070G 內置/16DI/16DO(晶體管24Vdc/0.5A), COM2:RS485, COM3:RS485, 開孔尺寸;191x12
TP	TP70P-22XA1T	TP070G 內置/8DI/8DO(晶體管24Vdc/0.5A), 4AI/2AO, COM2:RS485, COM3:RS485, 開孔尺寸;191x12
TP	TP70P-21EX1T	TP070G 內置/8DI/8DO(晶體管24Vdc/0.5A), 2PT/2AI(電流型)/1AO, COM2:RS485, COM3:RS485, 開孔尺寸;191x12
TP	文本PLC一體機,內置PLC, DC24V供電
TP	TP04P-16TP1R	TP04G-BL文本顯示器內置/8DI/8DO(繼電器/250Vac/24Vdc/2A), RS232,COM2:RS485, COM3:RS485, 開孔尺寸: 164x97
TP	TP04P-32TP1R	TP04G-BL文本顯示器內置/16DI/16DO(繼電器/250Vac/24Vdc/2A), RS232,COM2:RS485, COM3:RS485, 開孔尺寸: 164x97
TP	TP04P-22XA1R	TP04G-BL文本顯示器內置/8DI/8DO(繼電器/250Vac/24Vdc/2A), 4AI/2AO, RS232,COM2:RS485, COM3:RS485, 開孔尺寸: 164x97
TP	TP04P-21EX1R	TP04G-BL文本顯示器內置/8DI/8DO(繼電器/250Vac/24Vdc/2A), 2PT/2AI(電流型)/1AO, RS232,COM2:RS485, COM3:RS485, 開孔尺寸: 164x97
TP	TP04P-16TP1T	TP04G-BL文本顯示器內置/8DI/8DO(晶體管24Vdc/0.5A), RS232,COM2:RS485, COM3:RS485, 開孔尺寸: 164x97
TP	TP04P-32TP1T	TP04G-BL文本顯示器內置/16DI/16DO(晶體管24Vdc/0.5A), RS232,COM2:RS485, COM3:RS485, 開孔尺寸: 164x97
TP	TP04P-22XA1T	TP04G-BL文本顯示器內置/8DI/8DO(晶體管24Vdc/0.5A), 4AI/2AO, RS232,COM2:RS485, COM3:RS485, 開孔尺寸: 164x97
TP	TP04P-08TP1R
TP	TP04P-21EX1T	TP04G-BL文本顯示器內置/8DI/8DO(晶體管24Vdc/0.5A), 2PT/2AI(電流型)/1AO, RS232,COM2:RS485, COM3:RS485, 開孔尺寸: 164x97

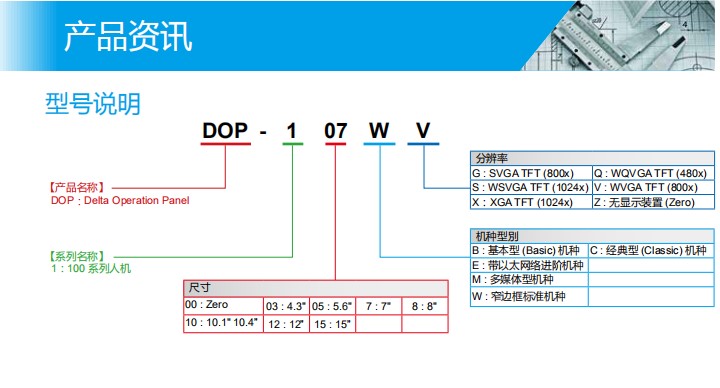

HMI	DOP100 新一代HMI

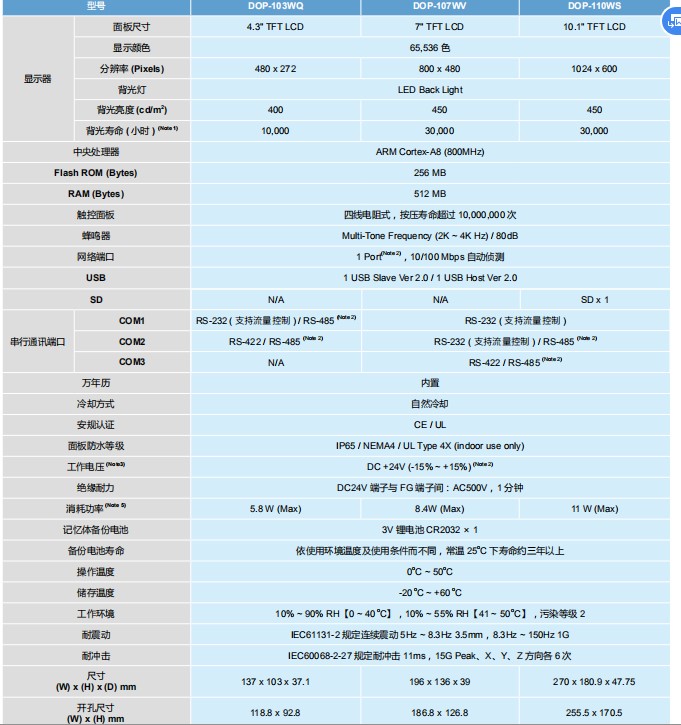

HMI	DOP-107WV	7"/分辨率800x480/U盤/打印機/鼠標/集成以太網/窄邊框，高亮度大于400流明，COM1:RS232, COM2:RS-232/485, COM3:RS-422/485,
HMI	DOP-110WS	10.1"/分辨率1024x600/U盤/打印機/鼠標/集成以太網/窄邊框，高亮度大于400流明，COM1:RS232, COM2:RS-232/485, COM3:RS-422/485,
HMI	DOP-103WQ	4.3" TFT LCD 480 x 272 4-wire resistive touch screen> 10,000,000 operated RS-232／RS-422／RS-485 (has built-in isolated power circuit) 亮度400,

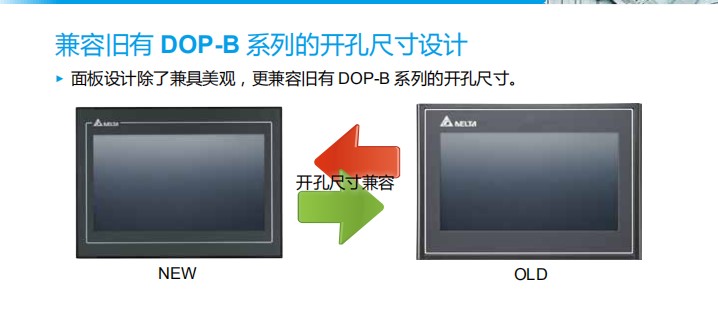

HMI	DOP100B，替換原有DOP-B系列

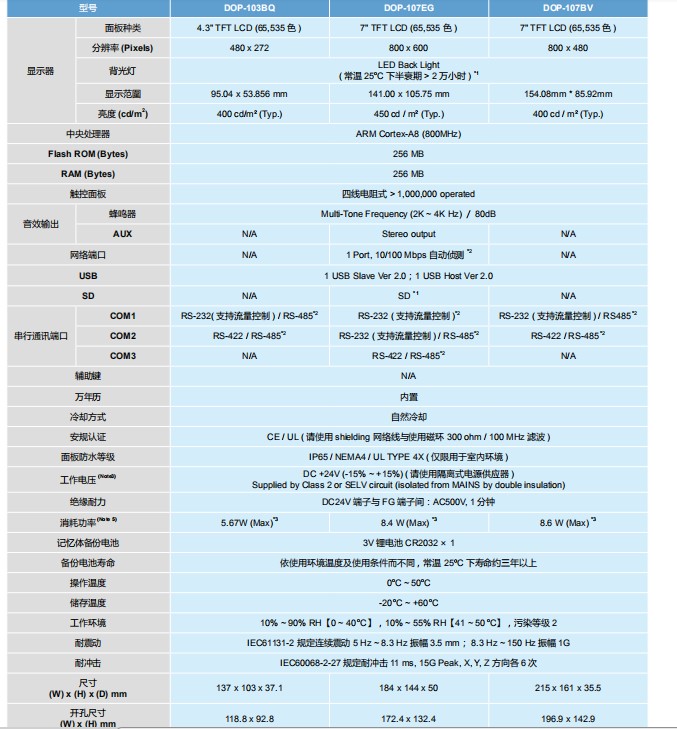

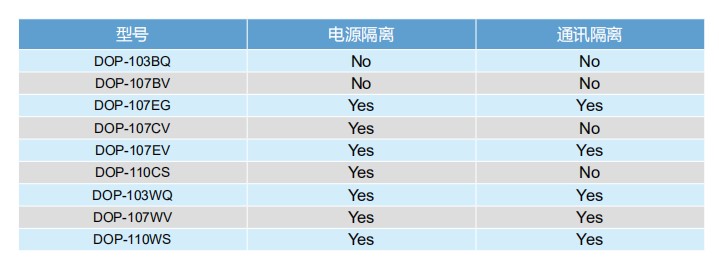

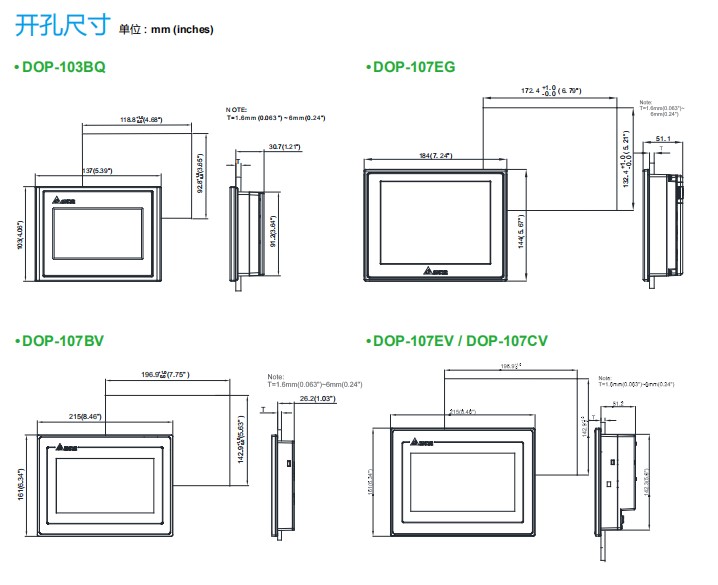

HMI	DOP-103BQ	4.3"/分辨率480×272/U盤/打印機/鼠標，高亮度500cd/㎡，COM1:RS-232/485, COM2:RS-422/485,COM3:N/A
HMI	DOP-107BV	7"/分辨率800×480/U盤/打印機/鼠標，高亮度400cd/㎡，COM1:RS-232/485, COM2:RS-422/485,COM3:N/A

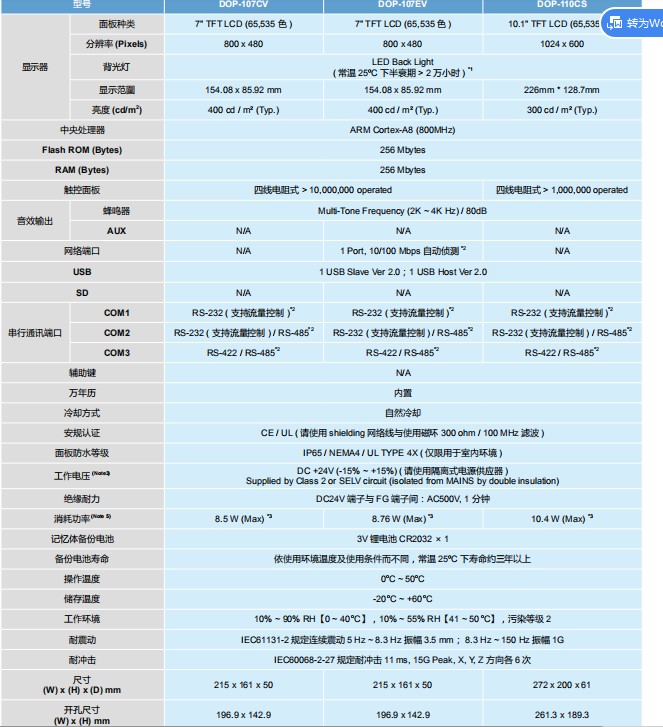

HMI	DOP-107CV	7"/分辨率800×480/U盤/打印機/鼠標，高亮度400cd/㎡，COM1:RS-232, COM2:RS-232/485,COM3: RS-422/485
HMI	DOP-107EV	7"/分辨率800×480/U盤/打印機/鼠標/集成以太網，高亮度400cd/㎡，COM1:RS-232, COM2:RS-232/485,COM3: RS-422/485
HMI	DOP-107EG	7"/分辨率800×600/U盤/打印機/鼠標/集成以太網/窄邊框，高亮度450cd/㎡，COM1:RS-232, COM2:RS-232/485,COM3: RS-422/485

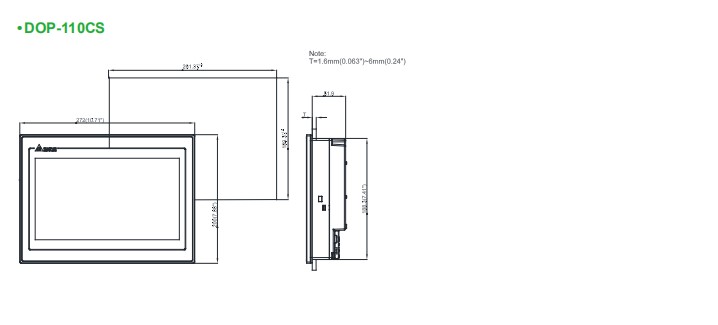

HMI	DOP-110CS	10.1"/分辨率1024×600/U盤/打印機/鼠標，高亮度300cd/㎡，COM1:RS-232, COM2:RS-232/485,COM3: RS-422/485
HMI	DOP-110ES	10.1"/分辨率1024×600/U盤/打印機/鼠標/集成以太網，高亮度300cd/㎡，COM1:RS-232, COM2:RS-232/485,COM3: RS-422/485
